Product Details:
Payment & Shipping Terms:
|
| Product Name: | Skinny 3 Drawer Mobile Pedestal | Size: | H615*W300*D500MM |
|---|---|---|---|
| Raw Material: | Cold Rolled Steel Plate | Anti-tilt Device: | Yes |
| Structure: | Assembly Structure | Product Color: | Customized |
| Thickness: | 0.7mm Before Painting | Handle: | Goose Neck Handle |
| Lock: | Key Lock/digital Lock/pad Lock | File Size: | A4/F4 ,Letter And Legal |
| Weight: | 20.5KGS | Warranty: | 10 Years |
| Highlight: | Skinny 3 Drawer Mobile Pedestal Cabinet,Stuff Slim Mobile Pedestal Cabinet |
||

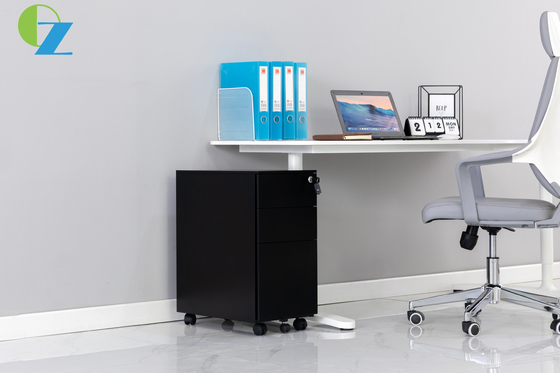

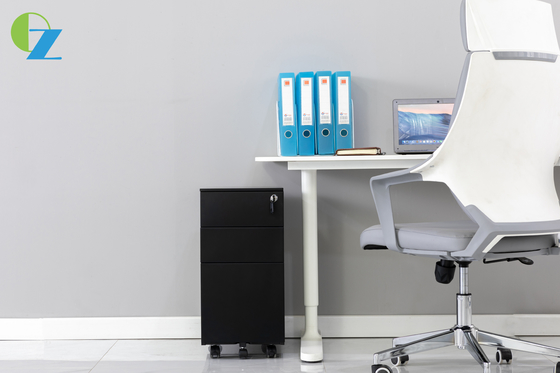

Skinny 3 Drawer Mobile Pedestal Slim Type For Stuff
Under desk 3 drawer mobile steel pedestal is suitable for simple office enviroment, it can be easily stored
under the table or rolled out to wherever storage is needed.
| Item name: | Skinny 3 Drawer Mobile Pedestal Slim Type For Stuff |
| Model number: | FYD-H027 |
| Usage: | Fit for school, office,archive etc. |
| Function: | Store file,book,document etc. |
| Structure: | NON KD Structure or Assembled |
| Lock: | Key lock/Pad lock/code lock /electronic lock is available. |
| Slide: | high quality three section Slide |
| Slide load Capacity: | 20kgs |
| Hanging file: | A4/F4 or US Legal/Letter size |
| Specification: | H615*W300*D500mm or Customized |
| Anti-tilt function: | Avaliable |
| Surface treatment: | Pickling, Phosphating, Electrostatic powder coating epoxy resin finish (NO smell and no harm to people or environment) |
|
Features: |
*Anti-tilt function |
| Loading quantity: | 440Pcs/40HQ(Average Standard quantity ) |
| Stick label: | Customer's Design and Logo is Acceptable |
| Packing volume: | 0.17m3 per unit(Average Standards ) |
| Gross Weight: | 17kgs |
| Warranty: | 10 years |
| Assembly instruction: | Avaliable and put into every carton. |
| Sample: | Avaliable |
| Place of Origin: | Luoyang,China |
| MOQ: | At least 30pcs ,trial order is acceptable. |
| Market: | North America, South America, Europe, Africa, Oceania, Middle East, Asia etc. |
3 Drawer Mobile Pedestal Features:
Product details:
The Ouzheng of mobile pedestal manufacture process as following:
1. Cutting: According to the design-drawings, the steel sheets(open and flat) are cut into different sizes by the high-accurated machines, without errors or burrs.
2. Pressing: The CNC machine tools and other machine tools work with the big-scale moulds together to reach the required standard and cooperate with the flow line production, which assure the production efficiency and quality
3. Bending: Skilled workers and advanced facilities make sure the clear lines and perfect appearance
4. Welding: Locate the work pieces into the corresponding mould, firmly weldwith CO2 shielded welding or argon-arc welding and then conduct slag removing and polishing.
5. Coating: All the sheet material parts will go through 13 treatments of water cleaning, acid-washing, phosphating etc. The imported automatic spray facilities and top-quality powder promise the coating to be flat and smooth, non-toxic and no smell.
6. Installation: To ensure the firmness of every screw, the installation workshop adopts pneumatic tools to conduct mass and flowline production.
7. Assembly and packing: Strict and special testing before packing and storage to make sure the products are highly-qualified.
Our Competitive Services:
1. We are SEDEX members and have rich experience in factory audit, especially in social responsibility auditing. For a long time, we have worked hard to optimize the product structure and packaging quality, so that most product structures pass the industry standard test (BIFMA), and the packaging passes ISTA 1A drop test.Also we have been committed to the research of recyclable and environmentally friendly in both production and packaging materials, and developed a set of packaging solution with recyclable material to meet both normal transportation and express delivery standard.
2.We have very experienced R&D engineers and we have strong ability to do ODM projects.
3. For all your inquires or quality feedback, we will reply you in detail within 24 hours.
4. We own well-trained and passionate sales & after- sale services.
5. We offer OEM services and can show your logo on the products.
RFQ:
Are You a Manufacturer ?
Yes, we are a professional steel furniture manufacturer which specialized in producing and marketing full range of office furniture system, such as office steel cabinets, filling cabinet, steel lockers, bookshelf, mobile cabinet, compact shelving, steel-wood school furniture(desk, bunk bed,chair,experimental platform) etc.
Where Is Your Factory Located?
Our factory is located in Liuli industrial zone, Luoyang YiBin District, Henan, China . Welcome to visit our factory.
Can You Do OEM?
Yes, we do OEM products. We also can do:
(1)Professional design: We have the professional designers, we usually produce goods based on customer's samples, design drawings, picture and sizes etc.
(2)Logo stamping: We can punch the logo on the products as the customer’s requirements.
What is your delivery?
Normally it takes about 25-30days for 1*40HQ. Project orders or special order can be negotiatable.
What is MOQ?
1*20GPmixture for trial order and 1*40HQ mixture is preferred.
What is delivery port?
Qingdao port
Can u provide sample?
Yes, sample can be ready within 7-10days upon confirmation of all details.
