Product Details:
Payment & Shipping Terms:
|
| Product Name: | Vertical 3 Drawer Filing Cabinet | Product Thickness: | 0.5mm-1.0mm |
|---|---|---|---|
| Warrenty: | 10 Years | Color: | RAL Color According Your Request |
| Product Size: | Customized | Material: | Cold Rolling Steel |
| Structure: | KD Or Assembly | Stick Label:: | Customer's Design And Logo Is Acceptable |
| Packing Volume:: | 0.08m3 Per Unit(Average Standards ) | Anti-tilt Function:: | Avaliable |
| MOQ:: | At Least 30pcs ,trial Order Is Acceptable. | Usage: | Office Furniture |
| High Light: | Anti Tilt Vertical Filing Cabinet,1.0mm 3 Drawer Vertical Filing Cabinet |
||
White Color 3 Drawer Vertical Filing Cabinet With Anti-Tilt Function
| Product Name | White Color 3 Drawer Vertical Filing Cabinet With Anti-Tilt Function |
| Product Model | FYD-K002 |
| Size | H1030*W452*D620mm (size can be customized) |
| Material | Regular thickness:0.6mm Cold rolled steel plate (0.5-1.2mm is available ) |
|
Band Name: |
OZ |
|
Structure: |
KD Structure or Assembled |
| MOQ | At least 30pcs ,trial order is acceptable. |
|
Certification: |
GB/T2009-2001 ,ISO9001:2008 , ISO 14001:2004 , AFRDI |
|
Master keys: |
Can provide |
|
Lock: |
Key lock/Pad lock/code lock /electronic lock is available. |
| Handle: | Metal Handle /Plastic Handle/ Goose neck Handle is available |
|
Handle Color: |
RAL or customized |
|
Name Holder: |
Available or as your request |
|
Slide: |
3 section of ball bearing Slide, pass BIFMA test. 50000 times of cycles test under 40kg of loading |
|
Slide load Capacity: |
35kgs |
|
Drawer load Capacity |
45kgs |
|
Material: |
Cold rolling steel sheet. (0.5-1.0 mm) |
|
Color: |
RAL or customized |
|
Market: |
North America, South America, Europe, Africa, Oceania, Middle East, Asia etc. |
|
Hanging file: |
A4/F4 or US Legal/Letter size |
|
Surface treatment: |
Electronic powder coating |
|
Trade Terms: |
FOB,CIF,CNF |
|
Payment Term: |
T/T,LC at sight |
|
Delivery Time: |
25-30 days after receiving the deposit. |
|
Special Use |
Gym/ School/ Sport/ Golf/ Factory/ Changing Room/Supermarket/Home etc |
|
Packing detail: |
Inner packing: polyfoam and pearl-cotton between each separate part. Outer packing: standard five layers carton. One piece in one master carton |
|
Stick label: |
Customer's Design and Logo is Acceptable |
| Packing volume: |
0.08m3 per unit(Average Standards ) |
| Loading quantity: | 850Pcs/40HQ(Average Standard quantity ) |
|
Gross Weight: |
29-37kgs |
|
Warranty: |
10 years |
|
Assembly instruction: |
Avaliable and put into every carton. |
|
Assembly time: |
15-20 minutes |
|
Sample: |
Avaliable |
|
Place of Origin: |
Luoyang,China |
Advantages :
Material: Cold rolled steel. All steel strucure is sturdy and durable
Surface: Electronic powder coating,No smell, formaldehyde-free
Drawer: Large space. Suitable for A4 ,F4,Legal/Letter
Lock: 2 keys , Steel lock with Environmental protection PVC
Wheel:Brake firmly, Rolling light almost silent
Sliding rail:Steel ball guide, Smooth drawing, non-slip fastener

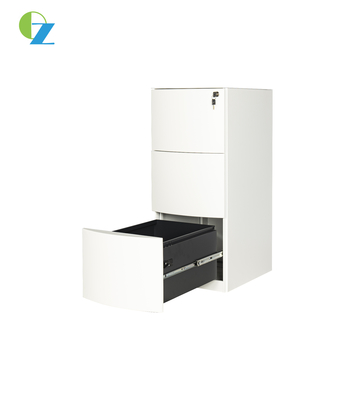

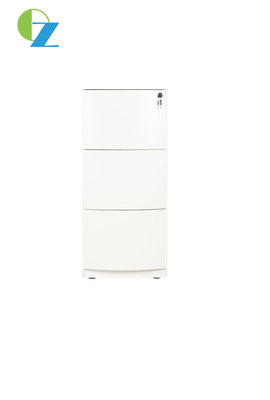

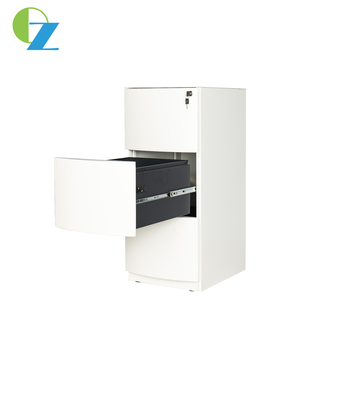

Multiple angle pictures to display the product.
The Ouzheng of mobile pedestal manufacture process as following:
1. Cutting: According to the design-drawings, the steel sheets(open and flat) are cut into different sizes by the high-accurated machines, without errors or burrs.
2. Pressing: The CNC machine tools and other machine tools work with the big-scale moulds together to reach the required standard and cooperate with the flow line production, which assure the production efficiency and quality
3. Bending: Skilled workers and advanced facilities make sure the clear lines and perfect appearance
4. Welding: Locate the work pieces into the corresponding mould, firmly weldwith CO2 shielded welding or argon-arc welding and then conduct slag removing and polishing.
5. Coating: All the sheet material parts will go through 13 treatments of water cleaning, acid-washing, phosphating etc. The imported automatic spray facilities and top-quality powder promise the coating to be flat and smooth, non-toxic and no smell.
6. Installation: To ensure the firmness of every screw, the installation workshop adopts pneumatic tools to conduct mass and flowline production.
7. Assembly and packing: Strict and special testing before packing and storage to make sure the products are highly-qualified.
