3 Drawers Metal Steel Office Cabinet White A4 / F4 File Drawer Mobile Pedestal

Metal Steel Office Cabinet With 3 Drawers White A4/F4 File Drawer Mobile Pedestal

Products Description:

Mobile pedestal is our best-selling products, which is widely used in office. As one convinient storage, with mordern appearence and strong construction, which is very popular with young office worker. The standard size is W390*D500*H490MM, other size can be customized based on the office size. For top and front, you could choose wood material as alternative. Delivery time is about 20-30 days for 1x40HQ, MOQ is 200pcs each one. Any color is available. The quality warranty is 5 years.

Specification:

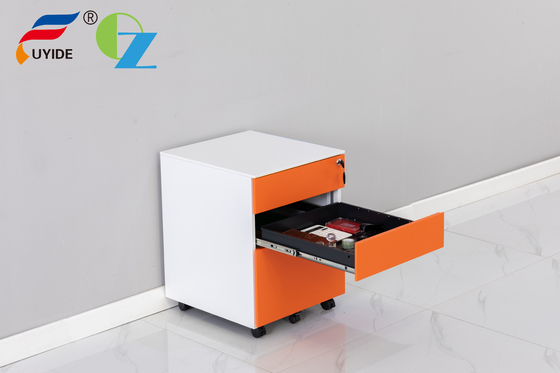

Details: key lock

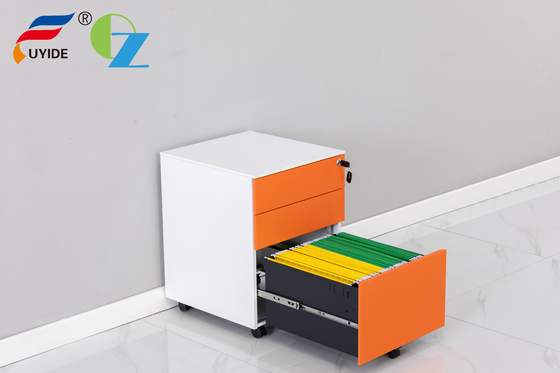

Details: front

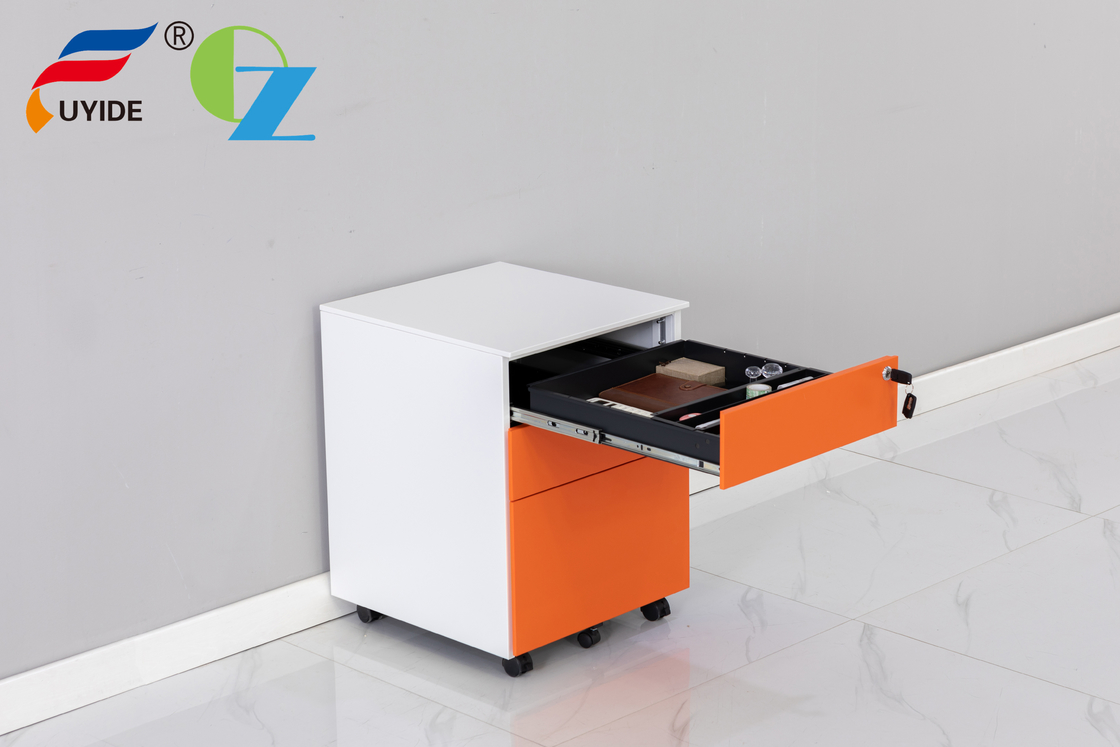

Details: side open

    Raw material:

Our raw materials is SPCC from HBIS, this steel sheet has a uniform thickness and a smooth surface that contributes to later bending, painting and prolong the use life of products. The thickness tolerance is only minus 0.02MM.

The raw materials used in traditional factories are steel strips. The thickness error is large. The error is 20 filaments (0.2mm), the surface will appear wavy lines and resulting in errors in bending angles, and the surface is uneven after painting and will cause product quality instability.

When it comes to the weight, the strip has a large error and the actual weight is much smaller than the theoretical weight, so the actual cost will be much smaller.

We can guarantee the stability of the product from the source.

    Powder:

We use Leka powder. Its powder passed the inspection and certification of SGS. The content of heavy metals and carcinogens does not exceed the standard.

The front is impacted with a 50kg cone-shaped film impactor, and the opposite side is impacted with a 30kg cone-shaped film impactor. There will not appear any cracks. Thus it can be seen that our powder has strong adhesion.

Commonly cabinets on the market will generally have surface bumps and off-powder in three to five years. These are all indications that the adhesion of powder is not strong.

The color fastness of the Leka powder is lasting. By testing, the indoor powder can stay in the sun for 500-700 hours without discoloration. And the outdoor powder can stay in the sun for up to 1200-1500 hours. Most of the steel furniture is used in the indoor powder.

We use the powder for cabinet is 3-5 yuan higher than traditional one.

Laser cutting material, precision accuracy error is controlled within 0.2mm.

Traditional cutting machine to cut the material, the error range is 0.5MM.

The small pieces are formed by rolling, the angle is very precise, and spot welding is very smooth.

The traditional bending production, production accuracy can not be guaranteed.

Bend: Traditional bends are based on the size of the drawing in Solid Works. The errors are greater.

We calculate the different bending factor and cutting size according to different material thickness, and it is closer to actual. After bending out, the gap is less than 0.1mm, and it can be directly take the laser welded. And we have different V-grooves (lower dies) to bend different thickness plates.

All customers' drawings are archived, and the factory's numerical control is high. The drawings not change and the quality will also not change.

The core of the sheet metal part is blanking and bending.

Manufacturing Technique:

Laser cutting material, precision accuracy error is controlled within 0.2mm.

Traditional cutting machine to cut the material, the error range is 0.5MM.

The small pieces are formed by rolling, the angle is very precise, and spot welding is very smooth.

The traditional bending production, production accuracy can not be guaranteed.

Bend: Traditional bends are based on the size of the drawing in Solid Works. The errors are greater.

We calculate the different bending factor and cutting size according to different material thickness, and it is closer to actual. After bending out, the gap is less than 0.1mm, and it can be directly take the laser welded. And we have different V-grooves (lower dies) to bend different thickness plates.

All customers' drawings are archived, and the factory's numerical control is high. The drawings not change and the quality will also not change.

The core of the sheet metal part is blanking and bending.
